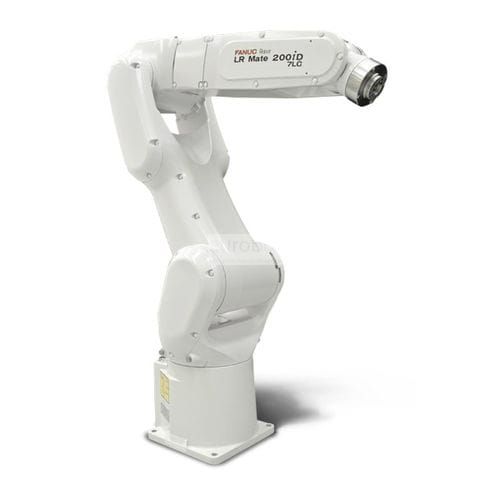

Fanuc LR Mate 200iD/7LC
LR Mate 200iD / 7LC high performance robot and versatility that provides optimized cycle times and a calculated TCP speed of up to 11 meters / sec. 911 mm long reach arm is used in manufacturing, laboratory and cleanroom applications, ideal for dusty or wet environments. It has several options, including intelligent integrated functionality (vision and strength), special application packages and standard IP67 protection.
R-30iB control system
Latest generation of efficient, compact and stackable FANUC advanced technology, enhanced productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 7 Kg
Number of axis: 6
Maximum horizontal reach: 911 mm
Repeatability: ± 0.03
Controller: R-30iB
Number of axis: 6
Maximum horizontal reach: 911 mm
Repeatability: ± 0.03
Controller: R-30iB
Motion range (°)
Axis 1: 360°
Axis 2: 245°
Axis 3: 430°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°
Axis 2: 245°
Axis 3: 430°
Axis 4: 380°
Axis 5: 250°
Axis 6: 720°
Maximum speed (°/s)
Axis 1: 370°/s
Axis 2: 310°/s
Axis 3: 410°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s
Axis 2: 310°/s
Axis 3: 410°/s
Axis 4: 550°/s
Axis 5: 545°/s
Axis 6: 1000°/s
Robot applications
Material handling
Assembly
Assembly
